Mechanical Water Circulation Aids Pond Water Quality

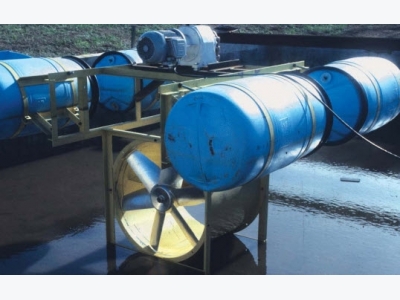

Based on a design developed at Auburn University, this horizontal circulator discharges about 60 m3/minute at 90 rpm

Summary:

Mechanical water circulation can prevent stratifica-tion and provide more dissolved oxygen near pond bottoms. Strong water mixing can also control algae growth. In study ponds with circulators operated for six to eight hours during summer days, water tem-peratures and dissolved-oxygen concentrations varied little with depth, and aerator use was signifi-cantly reduced.

Water circulation and mixing in aquaculture ponds have traditionally been mechanically induced by aera-tion equipment. Although designed to transfer oxygen to water, aerators also create strong water currents that cause circulation and mixing. Recently, some companies have begun selling equipment designed specifically to circulate pond water.

Uniform Water Quality

In still water, the water column stratifies thermally during the day when solar radiation causes the surface to heat faster than deeper layers. In aquaculture ponds – which are seldom over 2 m deep – the upper layers of water cool by conduction at night, and the water column mixes. Nevertheless, during the daytime, dissolved-oxy-gen concentrations can be much lower near the pond bot-tom than near the surface.

Mixing by wind or mechanical devices can prevent stratification and provide more dissolved oxygen near the pond bottom. Ponds with good water circulation across their bottoms are much less likely to have anaer-obic conditions at the sediment-water interface than ponds with less circulation.

Dissolved oxygen production by photosynthesis is intense under well-illuminated conditions, so the surface waters of ponds usually are supersaturated with dissolved oxygen during the day. Mechanical aerators do not transfer oxygen to water that is saturated with dissolved oxygen, but aera-tors that splash water increase the loss of oxygen to the air from supersaturated water. Mechanical circulation that does not splash water blends the surface water with deeper water and conserves dissolved oxygen from pho-tosynthesis.

Mixing and circulation provide a more uniform envi-ronment for aquaculture in which water temperature and concentrations of dissolved gases and nutrients tend to be similar throughout. This prevents localized zones with impaired water quality.

Mixing by wind or mechanical devices can prevent stratifi-cation and provide more dissolved oxygen near the pond bottom.

Algae Control

Illumination decreases with depth. Photosynthesis by phytoplankton at depths below 50 cm can be light-limit-ed. In a mixed pond, planktonic algae are transported continually throughout the water column by the circulat-ing water. As a result, the exposure of phytoplankton to light tends to be more uniform in a well-mixed pond than in a still pond. There is evidence that circulation stimu-lates dissolved-oxygen production by phytoplankton in ponds, because on average, algal cells receive more expo-sure to light.

Blue-green algae often accumulate on the surfaces of ponds as scum. These scums favor shallow thermal strat-ification and may be killed by bright light near the sur-face. Massive die-offs of blue-green algae can cause low dissolved oxygen and other water quality problems.

Circulation is beneficial in reducing the tendency for algal scums. Dense growths of macrophytic algae such as Spirogyra, Hydrodictyon, and Rhizoclonium also can be troublesome in fresh-water ponds. Strong water mix-ing can prevent the growth of these algae or at least ac-cumulations of algal masses in certain areas of ponds.

Mechanical Circulators

Mechanical aerators provide strong water circulation. However, their effectiveness in transferring oxygen dur-ing daytime is limited, and they are much more efficient during the night. Some experts feel that a combination of mechanical water circulation during the day and mechan-ical aeration at night might be the most effective way to manage dissolved-oxygen concentrations in ponds.

Conserving dissolved oxygen from photosynthesis by blending the surface water with deeper water in the day-time should lessen the amount of mechanical aeration required at night. Several types of mechanical water cir-culators have been developed for use in aquaculture, but two types have the greatest potential.

Conserving dissolved oxygen from photosynthesis by blending the surface water with deeper water in the daytime should lessen the amount of mechanical aeration required at night.

Air-Lift Pumps

The most well-known circulation device is the air-lift pump. These pumps are constructed of a length of PVC pipe, termed the eductor, and a PVC elbow. Air from a low-pressure, high-volume blower is released through a right-angle hose adaptor into the PVC pipe. Alternatively, air may be released through a diffuser to produce smaller bubbles.

Air-lift pumps create water circulation by lifting water from near the bottom and releasing it at the surface

Rising air bubbles lift water through the eductor and discharge it at the surface. A pump holder with flotation device is attached between the anchor post and pump to allow the pump to pivot in response to changes in water depth. Ballast must be provided at the bottom of the pump.

Many variations in the designs of air-lift devices have been used, and equations have been developed for predict-ing their discharge. The pumps create water circulation by lifting water from near the bottom and releasing it at the surface. Air-lift pumps also cause some aeration, because oxygen in the rising air bubbles diffuses into the water. In-creased turbulence caused by the pump discharge onto the water surface also increases oxygenation slightly.

Usually the energy expenditure for oxygen transfer is three to five times greater for air lifts than standard me-chanical aerators. Thus, air-lift pumps should not be thought of as aerators, but as water circulators. Air lifts have been used in ponds, but because of their relatively small size, they are best suited for small, intensive pro-duction units and hatchery tanks.

Horizontal Circulators

Horizontal, axial-flow water circulators are more suit-able for use in ponds because they discharge much more water than air lifts. Designed at Auburn University, a water circulator powered by a 3-hp gear motor that incor-porated 76-cm-diameter fan blades mounted within a 92-cm-diameter, 111-cm-long housing was capable of dis-charging about 60 m3/minute when operated at 90 rpm. Several companies have manufactured modified versions of this design.

Simpler water circulators have been made by attach-ing a large propeller to the output shaft of a submersible motor. Propeller-type circulators do not have housings, but deliver discharge:horsepower ratios similar to the large device described above.

Horizontal-discharge water circulators are not de-signed to effect aeration. Nevertheless, they increase tur-bulence at the water surface, which can slightly increase gas transfer between air and water.

Circulation Studies

Several studies of water circulation were conducted in the late 1980s and early 1990s with similar results. For example, a water circulator of the type built at Auburn University was evaluated by C. S. Tucker and J. A. Stee-by in channel catfish ponds in Mississippi, USA. The water circulators were operated for six to eight hours during summer days.

Relative to ponds without circulators, midday water temperatures and dissolved-oxygen concentrations var-ied little with depth in ponds with circulators. Circula-tion did not reduce the incidence of critically low night-time dissolved-oxygen concentrations, but did reduce the total hours of aeration required to support fish produc-tion by a factor of 0.58. The savings in power costs for aer-ation in the circulated ponds were largely offset by the costs of circulator operation

In spite of the lack of convincing evidence of the ben-efits of water circulators, energy costs are rising world-wide, and the possibility for using mechanical water cir-culators to lessen the requirements for mechanical aera-tion appears worthy of a second round of scientific in-vestigation and farm trials.
